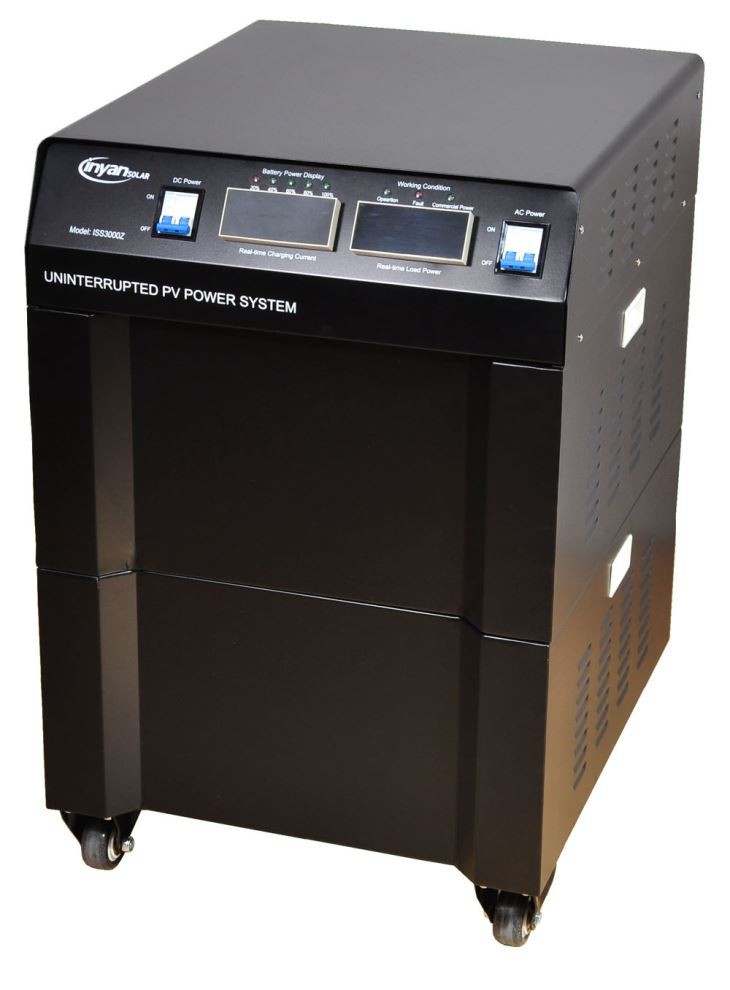

2kw Pure Sine Wave Solar Power Inverter

2kw Pure Sine Wave Solar Power Inverter
Chat Now
Product Details
Should you're in need of quality 2kw pure sine wave solar power inverter, welcome to buy the discount 2kw pure sine wave solar power inverter with reasonable price from our factory. As a professional manufacturer and supplier, we are equipped with advanced technology to better serve you.

Basic Info

  • Model NO.: IND 2KW

  • Output Power: 2000W

  • Type: DC/AC Inverters

  • Nature of Wave String: Sine Wave Inverter

  • Price: Adjustable

  • Output: Single Phase

  • Protection: Shortcircuit

  • Display: LCD

  • Efficiency: >90%

  • Transport Package: Wooden Case

  • Origin: China

  • Nature of Source Flow: Solar Inverter

  • Certification: CE

  • Circuit Topologies: Full-Bridge Type

  • After-Sales: Take Photo, Send Spare Parts

  • Input: Single Phase

  • Hz: 50Hz/60Hz

  • Service: OEM and ODM Service

  • Color: Black

  • Trademark: INYAN

  • Specification: 400*193*320mm

  • HS Code: 8504403090


    2kw Pure Sine Wave Solar Power Inverter
    The Pure Sine Wave Inverter is desirable long backup power solution for home and
    office appliances. It is not only an inverter but also contains a powerful intelligent
    charger. It provides pure sine wave power to all kinds of loads.

    1. DSP digital control technology

    2. Advanced SPWM technology

    3. AC input with effective online synchronous stabilizing technology

    4. Suitable for all kinds of loads, such as resistive, inductive and rectified loads and motors

    5. Pure sine wave output

    6. Wide DC input range.

    7. Charging current selectable according to configured battery

    8. Intelligent long backup time up to 10hrs (based on battery bank and loads)

    9. Short circuit, overload and low battery protection

    10. Compatible with generators and matching of inverter and generator is settable

    11. Operating mode selectable: DC input priority or AC input priority

    12. High reliability: adopt high-speed DSP control system, combine advanced SPWM technology and high-speed power MOS

    13. Auto Power-On/Off function; real-time monitoring, test and intelligent startup / shutdown by RS232 or usb interface communicating with pc; remote monitoring by optional SNMP networks

    Nominal capacity (KW)0.511.22345
    DC voltage24VDC48VDC/96VDC
    Output  voltage220VAC ± 2%
    Output Frequency50Hz ± 1%
    Charge currentMax 20A
    Overload capacity 105%~125%,60sec; >125~150%,10sec; >150%, 140ms output short circiut <150ms
    Noise≤45dB(Distance 1m)
    Size(W*D*H mm)400*193*320480*260*430
    Weight 25303235405060
    Nominal capacity (KW)610152030405060
    DC voltage96VDC192VDC/384VDC384VDC
    Output  voltage220VAC±2%220VAC±1%
    Output Frequency50Hz ± 1%
    Charge currentMax 20A6A~20A(adjustable)
    Overload capacity 105%~125%,60sec; >125~150%,10sec; >150%, 140ms output short circiut <150ms125%10min,150% 1min
    Noise≤45dm(Distance 1m)    ≤55dB(Distance 1m)≤65dB(Distance 1m)
    Size(W*D*H mm)550*260*640630*650*1130650*800*1500
    Weight (KG)70100180220250280310360
    Common parameter
    Input voltage 220VAC±25%
    Input frequency50HZ±10%,60HZ±10%
    Output waveformPure sine-wave
    ProtectionInput/output over high or low protecting
    Low battery protecting ; surge and pike-currents protecting
    Operation temperature0~40oC
    Storage temperature"-15~50oC"
    Operating height above sea level0~3,000meter


    Q1 : What is you advantages?


    a).We are professional ups manufacturer for more than ten years and we have these staffs with rich

         production and R&D

    b) Excellent workers and skilled engineers

    c).Our aims are to provide every customer high quality, reasonable price and excellent


     d)we can guarantee to send the goods on time. And also accept any transportation ways that

    you require


    Q2 : How do you control the production quality?


    a) For materials, we have IQC departments and the IQC testing follow MIL-STD-105E standard

    b) in production have 4 times function testing

    c) all of our products with 100% burn-in testing

    d) 100% QC testing before delivery


    Q3 : Do you accept OEM/ODM?

    A3 : ODM&OEM are warmly welcomed !!!


    Q4 : what's your payment?

    a) We can accept payment terms of T/T, Western Union.

     Samples and trial order accept PayPal ,T/T & Western Union. normal order accept T/T &Western Union

    b) 30% ADVANCE DEPOSIT after buyer's confirmed payment, the balance should be paid before shipping when goods are ready.
